2525 CNC Router

Request a Quote

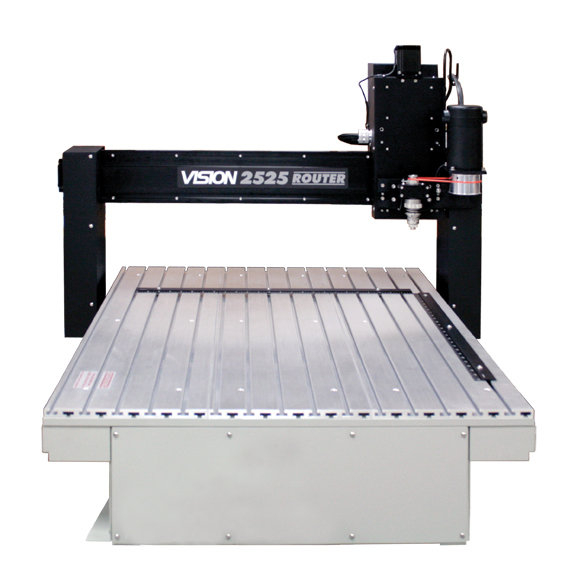

The 2525 S5 CNC Router/ Engraver is Vision's heavy-duty routing system. It can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do the same work by hand. Featuring our state-of-the-art Vision Series 5 Controller with V-Touch Pendant and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.

The 2525 S5 CNC Router:



25" x 25" aluminum T-slot table to accommodate various work-holding    fixtures

Red Laser Pointer for easy job set-up

• Includes Series 5 Controller w/ V-Touch pendant

• Optional Raster™ Braille Inserter for automatic Braille bead insertion

• A limited 2-year warranty



Applications: ADA-compliant signage, Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material up to 2' x 4', 2 1/2D and 3D signs in sign foam, wood and more!

425lbs
40" x 42" x 32"
25"x50"
30.5”(L) x Any Width x 7”(H)
Engraving Head standard (3 HP Router Motor optional
Ethernet
