1612/1624 Pro Engravers

Request a Quote

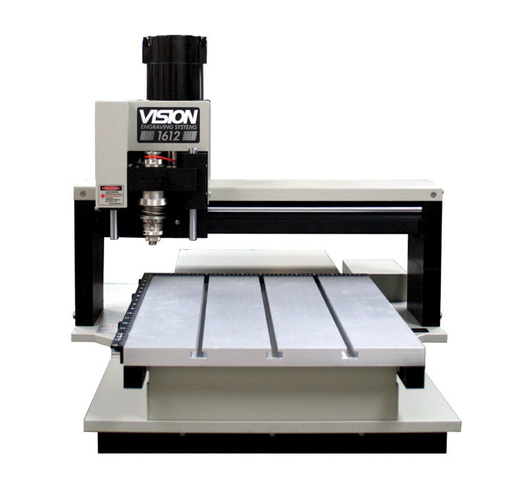

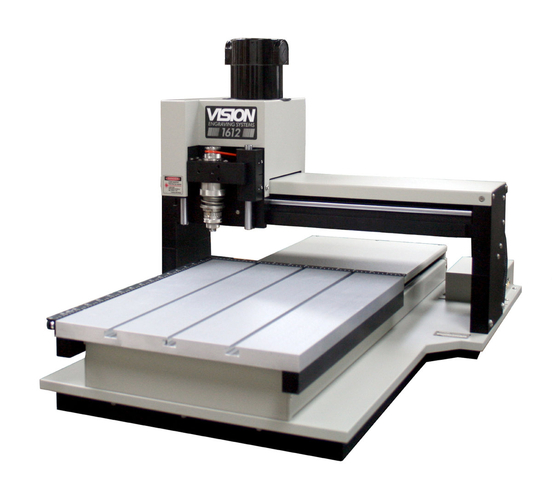

The 1612 Pro S5 Engraver is ideal for light- to heavy-duty applications in a medium-size engraving area. Offering a 16" x 12" aluminum T-slot table, this wood, plastic and metal engraving machine has set the precedent for quality in the industry and is designed for professional and industrial marking applications.

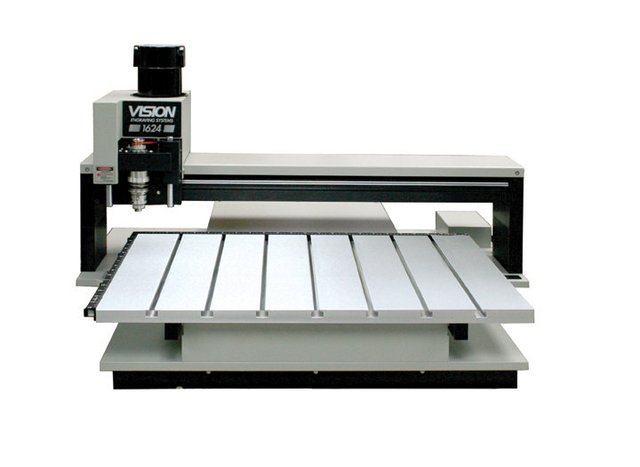

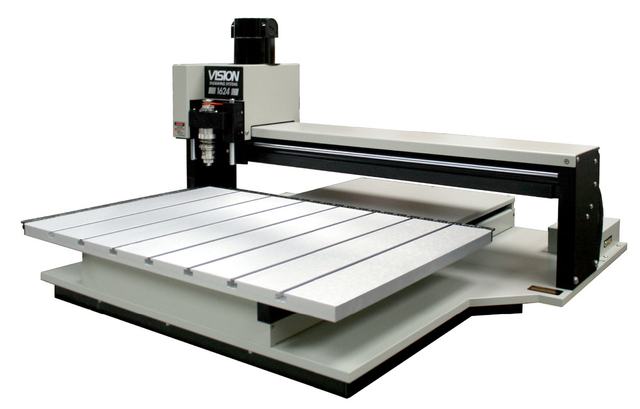

The 1612/1624 S5 Pro Engraver:


11/64” or 1/4” top-loading spindle (collet optional)

• Includes NEW Series 5 Controller w/ V-Touch pendant

• Engraves items up to 1.875” thick (3.5” thick w/ custom risers)

• Optional high-speed NSK Spindle and Unist Misting System for deep metal engraving on stainless steel

• Optional Automatic Raster™ Braille Inserter tool

• A limited 2-year warranty


Applications: Trophies, plaques, gift items, notary seals, tool & die work, tags, plates, deep metal cutting, ADA-compliant Braille signage, parts marking, plastic engraving, control panels and more!

1612 - 200lbs 1624 - 250lbs
1612 - 31.5" x 21" x 19" 1624 - 31.5" x 35" x 19"
16" x 12" and 16" x 24"
18.5" (L) x Any Width x 5" (H) and 30.5" (L) x Any Width x 5" (H)
1/64”, 6mm or 1/4” / Top Loading, Collet Spindle Available
