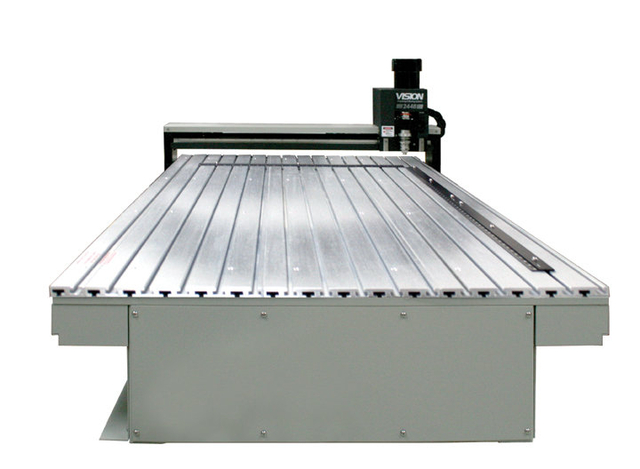

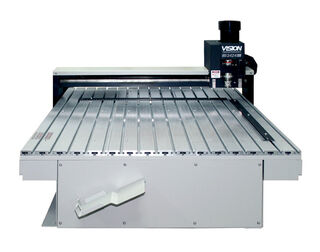

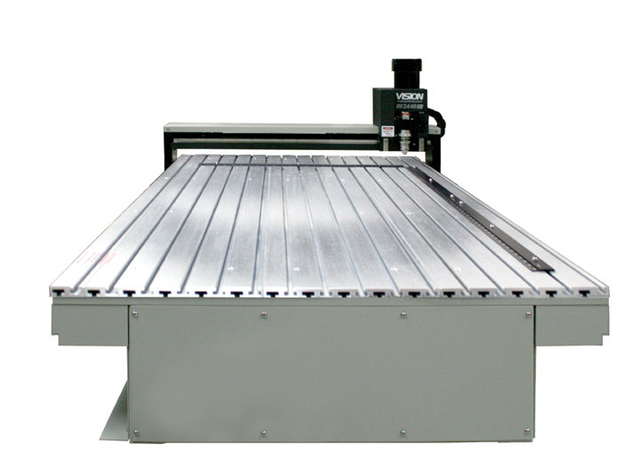

2424/2448 Engravers

Request a Quote

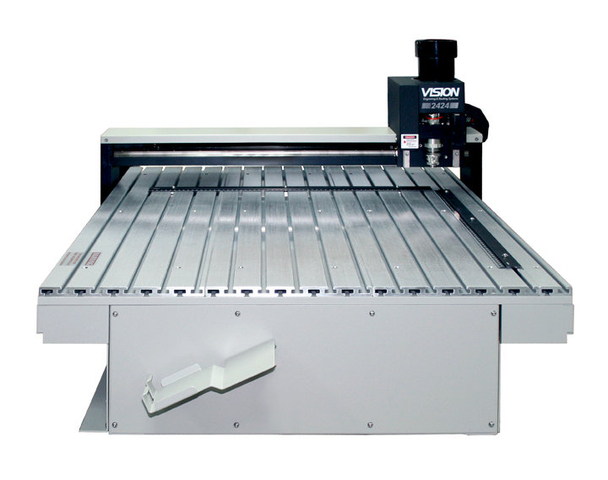

The 2424 S5 Engraver is perfect for light- to heavy-duty job applications in a large engraving area. Great for a variety of jobs such as large signage, high-volume production projects, industrial marking, and multiple plate jobs! The 2424 computerized engraving machine is also ideal for marking industrial items such as tools, cylinders, pipes, and gauges.

The 2424 S5 Engraver:


24" x 24" Large work area

• Aluminum T-slot table to accommodate various work-holding fixtures

Engraves items up to 1.875” thick (3.5” thick or more w/ custom risers)

• Uses 11/64” or 1/4” top-loading spindle (collet optional)

• Optional Automatic Raster™ Braille Inserter for automatic Braille bead

• A limited 2-year warranty


Applications: Sign making, Trophy & Plaques, Parts Marking, Badge Engraving, ADA Braille Signs, Wood Engraving, Plastic Engraving, Metal Engraving, Tag Engraving, Control Panels and more!

370lbs / 420lbs
33” x 42” x 20” / 33” x 66” x 20”
24” x 24” / 24” x 48”
30.5”(L) x Any Width x 5”(H)
11/64”, 6mm or 1/4” / Top Loading, Collet Spindle Available
